Dry Utility 100 Series

Specifications: Steel case with chrome bezel, brass internals and connection, dry non-fillable, 3-2-3% accuracy. Available Dial Sizes: 1″, 1 1/2″, 2″, 2 1/2″, 3 1/2 “, 4 1/2”. Available Connection Sizes: 18″mnpt on 1 1/2″ and 2″, 1/4″ mnpt on 2″ thru 4″

Liquid Filled 200 Series

Specifications: Steel case with chrome bezel, brass internals and connection, dry non-fillable, 3-2-3% accuracy. Available Dial Sizes: 1″, 1 1/2″, 2″, 2 1/2″, 3 1/2 “, 4 1/2”. Available Connection Sizes: 18″mnpt on 1 1/2″ and 2″, 1/4″ mnpt on 2″ thru 4″

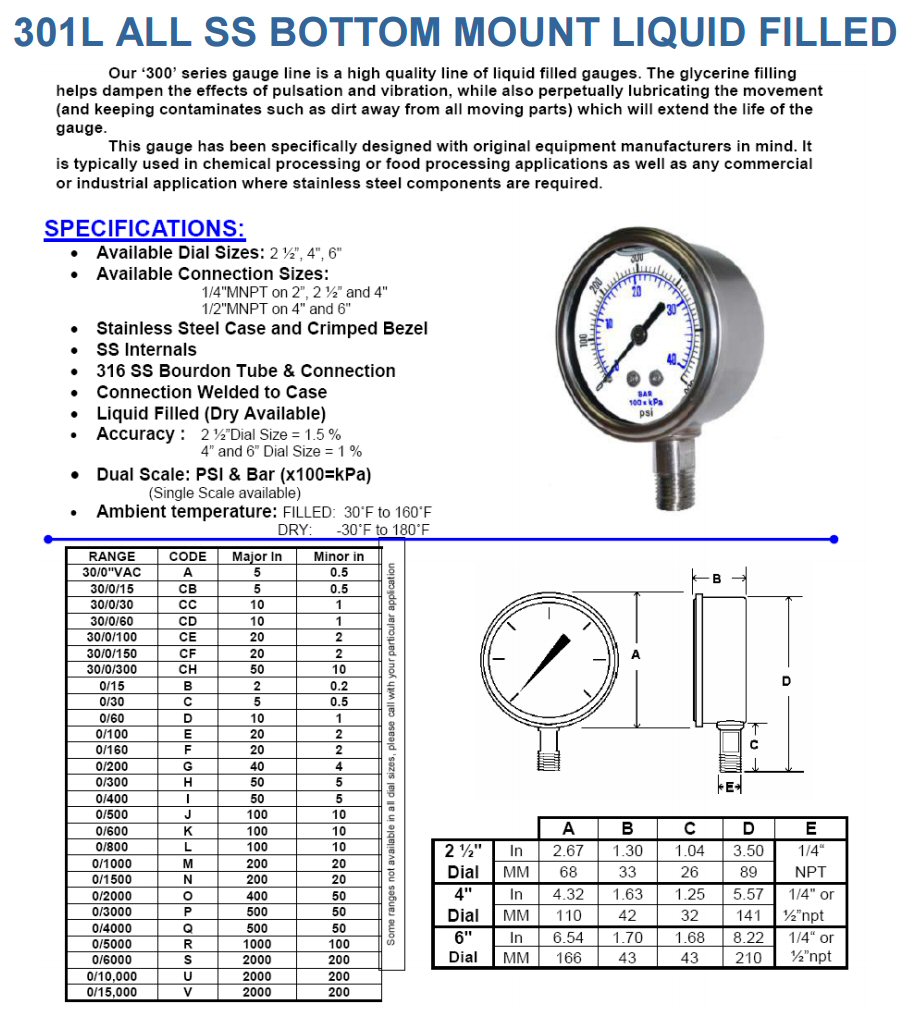

All Stainless 300 Series

Our ‘300’ series gauge line is a high quality line of liquid filled gauges. The glycerin filling helps dampen the effects of pulsation and vibration, while also perpetually lucubrating the movement (and keeping contaminates such as dirt away from all moving parts) which will extend the life of the gauge. This gauge has been specifically designed with original equipment manufacturers in mind. It is typically used in chemical processing of food processing applications as well as any commercial or industrial application where stainless steel components are required.

4501 Process Gauge 4 1/2″ Bottom Mount

Standard Features: Overload and Underload Stops, Hermetically Sealed / Weather Proof, Liquid Fillable / No Kit Required.

Sprinkler Gauges

UL listed / FM Approved pressure gauges designed for use in the fire protection/sprinkler market. Suitable for air, water, oil, gas or any other media not corrosive to brass. Other Ranges, connection locations, mounting styles and accessories available. Ready for immediate shipment upon request.

Low Pressure Series

Specifications: Chrome plated case, Black steel case (u-clamp panel mnt), Bras internals and connection, Dry non-fillable, +/- 1.5% accuracy. Features: 2 1/2″ dial size with twist lock plastic lens, zero adjustment screw on back of case, 1/4″ mnpt bottom or back connection, capsule type diaphragm to measure low pressures.

Digital Pressure Gauge Series

The Series DPG-100 Digital Pressure Gage has a precise _/- 0.25% full scale accuracy. The 4 digit digital display will reduce the potential errors in readings by eliminating parallax error commonly produced with analog gages.

THE DPG-100 is packaged in a durable extruded aluminum case designed to meet NEMA 4/4X. The unit is battery powered and has an auto-shut off to conserve the battery life. A four button key pad allows easy access to features without the need to work through complex menus or difficult key combinations. These features include backlight, peak and valley, auto zero and conversion of the pressure units. Readings may be converted to various engineering units.

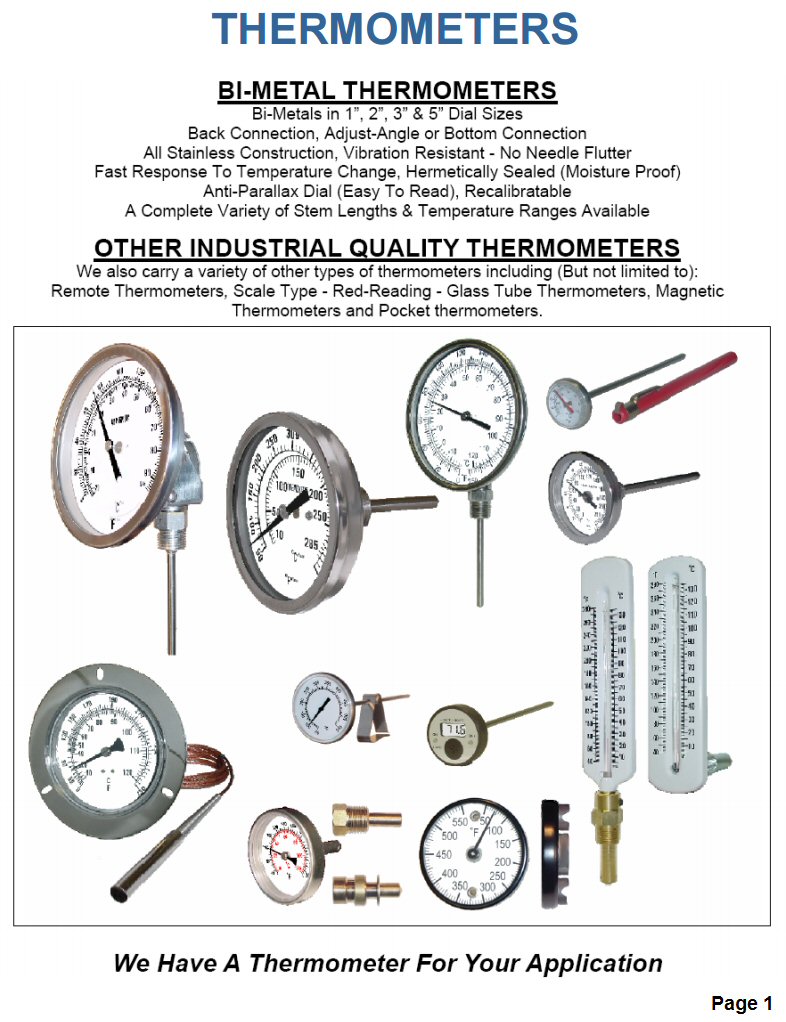

BiMetal Thermometers and Wells

Bi-Metals in 1″, 2″, 3″ & 5″ Dial Sizes, Back Connection, Adjust-Angle or Bottom Connection, All Stainless Construction, Vibration Resistant – No Needle Flutter, Fast Response To Temperature Change, Hermetically Sealed (Moisture Proof), Anti-Parallax Dial (Easy To Read), Recalibratable, A Complete Variety of Stem Lengths & Temperature Ranges Available
